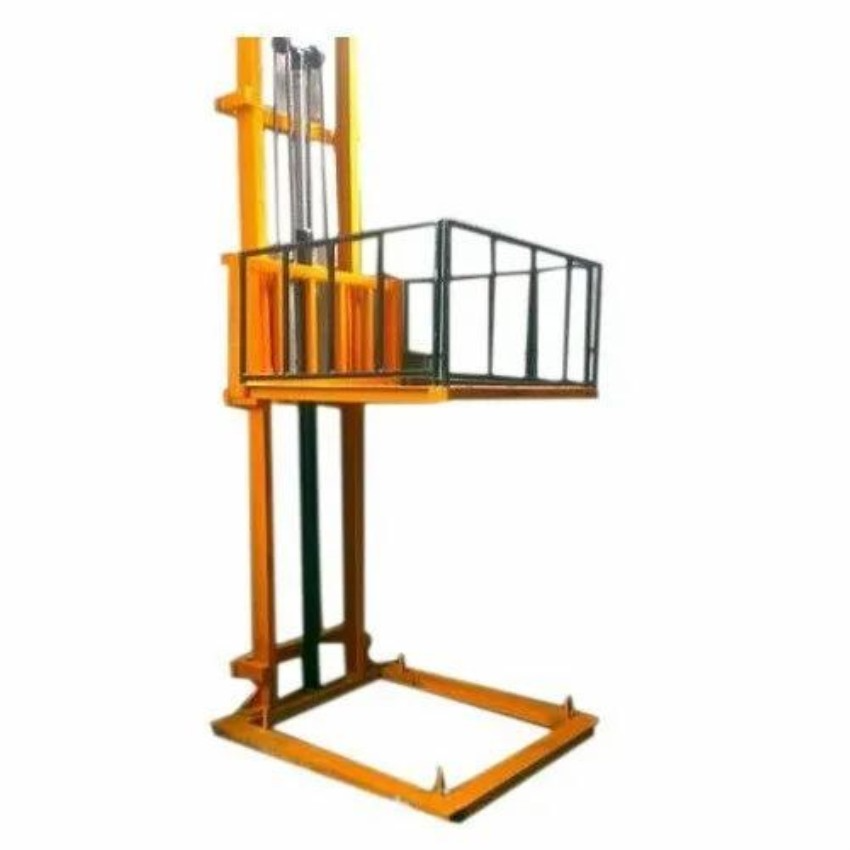

Single Mast Goods Lift

Single Mast Goods Lift are compact, easily maneuverable, lightweight equipment for conveniently working at heights both indoors as well as outdoors.

Features:The stored dimensions for most models are such that the Equpment can easily pass through most standard doorframes as well as can easily be transported to different levels in medium sized lifts/elevators. For efficient usage in Airports, Hotels, Malls, Hospital Amusement Parks and Industries etc.

SINGLE MAST PLATFORMS

Single Mast Goods Lift (Personnel Lift) are available up to a platform height of 9 mtrs and working height of 10.7. These are suitable for use by a single person along with tools and have a platform size of 600×550 mm.

Single Mast Goods Lift are compact, easily maneuverable, lightweight equipment for conveniently working at heights both indoors as well as outdoors.

Specifications:

Mast	Model	Max Platform Height H1	Max Working Height H2	Loading Capacity	Platform Dimension LxW	Power Supply	Stored Dimension L0 x W0 x H0	Machine Weight
		mm	mm	Kg	mm		mm	Kg
Single	AWPL-1006	6	7.7	135		AC 200V or DC 12V	1395×885 x2030	210
	AWPL-1008	8	9.7	125	600×550	or	1395×885 x2030	250
	AWPL-1009	9	10.7	125		220AC+ 12V DC	1630×1020 x2030	280

Features:

The stored dimensions for most models are such that the Equpment can easily pass through most standard doorframes as well as can easily be transported to different levels in medium sized lifts/elevators. For efficient usage in Airports, Hotels, Malls, Hospital Amusement Parks and Industries etc.SINGLE MAST PLATFORMS

STABILIZER/OUTRIGGERS

The outriggers are easy to use. Four outriggers are provided with screw disc type mechanizm to ensure stability and for proper leveling of the equipment.
